How to do a Standalone Web Test using Test Studio

In this how to post we will see how to start Standalone Web Test using Test Studio.

Step 1

Open Test Studio and from New Test option in menu ribbon choose Web Test

clip_image001

You can see in the project files a Web Test has been added. If you want you can rename that by right clicking on the project and choosing the rename option.

clip_image002

Step 2

Double click on the Web Test project in the project files to open it on the StoryBoard. From menu ribbon select Record ->Launch a New Recording Browser. It will launch selected browser. You can select browser from the ribbon

clip_image004

Step 3

In browser perform some operations to test. After performing all the operation choose Run from the ribbon the run the test.

clip_image005

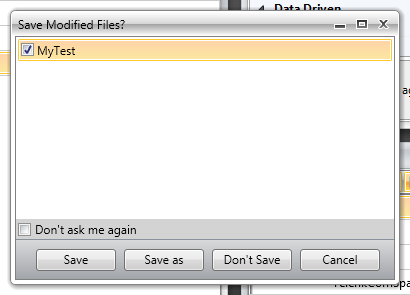

You will be asked to Save the Test.

clip_image006

Step 4

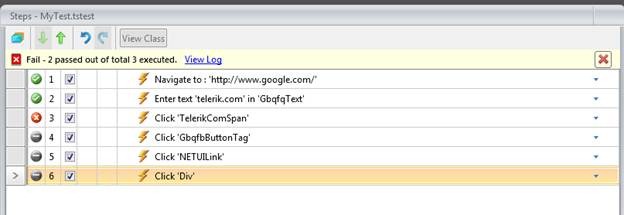

You can view all the steps with result.

clip_image008

On clicking of a step you can enable inline editing.

clip_image010

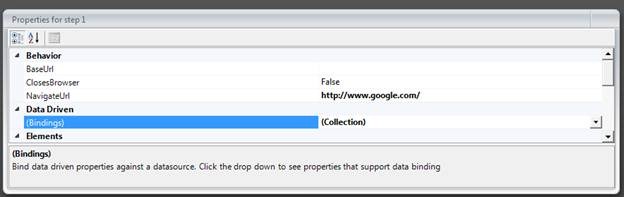

On the right you can see Property windows for a particular step.

clip_image012

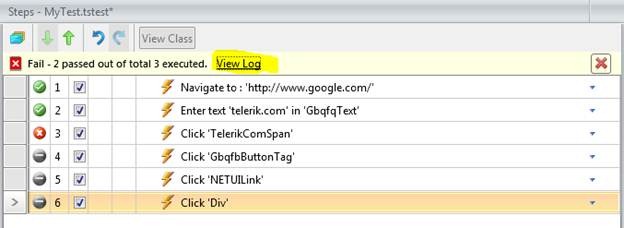

You can view error log by clicking on View Log

clip_image014

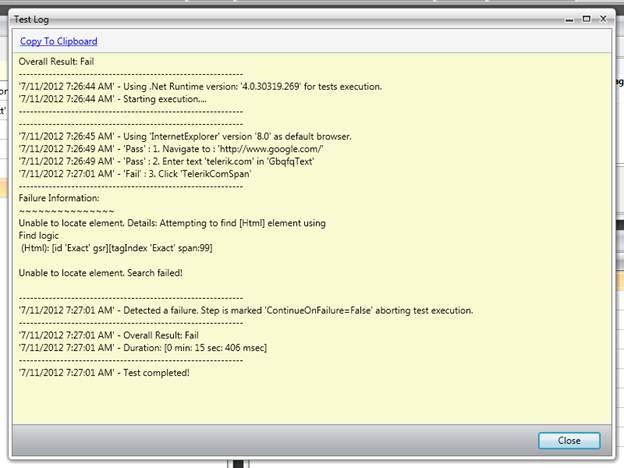

You can see error log as following

clip_image016

Step 5

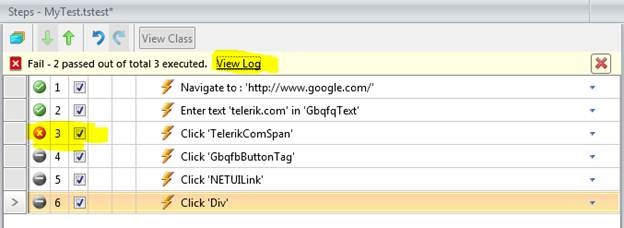

To see Step failure error detail click on step failure in the steps

clip_image018

Step failure detail is as following

clip_image020

You can view image of failure as following

clip_image022

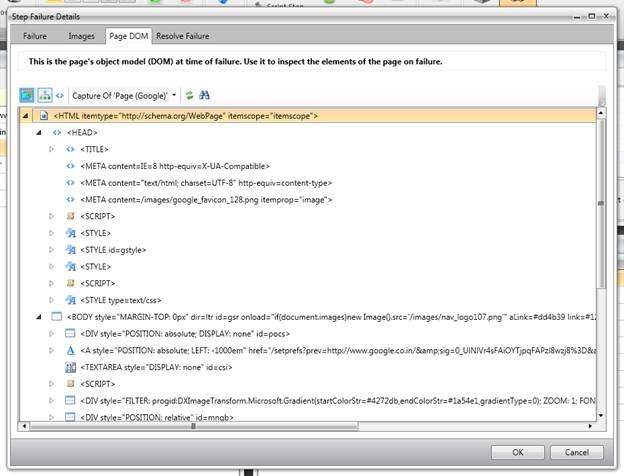

You can examine Page DOM on clicking DOM tab as well.

clip_image024

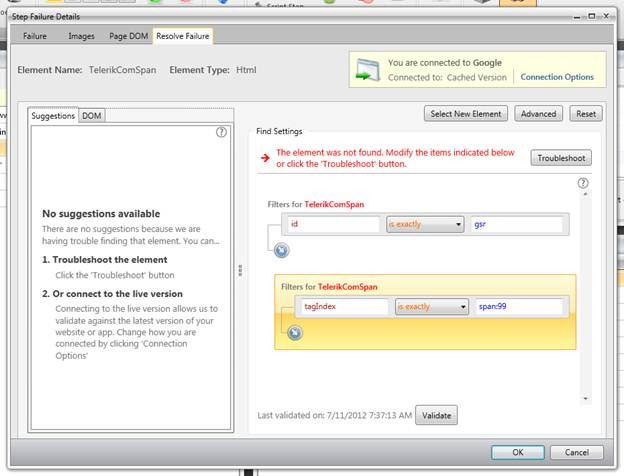

Suggestion to resolve failure can be viewed on clicking on Resolve Failure

clip_image026

You can export result to file

clip_image028

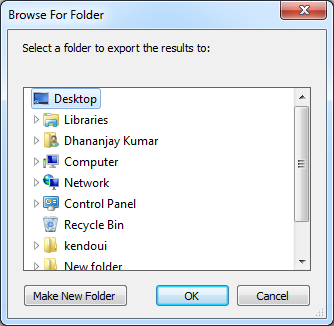

On clicking of Export Result to file you will be asked to save the file.

clip_image029

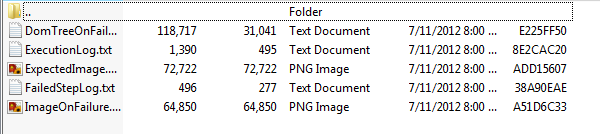

A zip file will get saved at the given location. There will be following files inside the downloaded zipped file.

clip_image030

In this way you can perform standalone web testing
